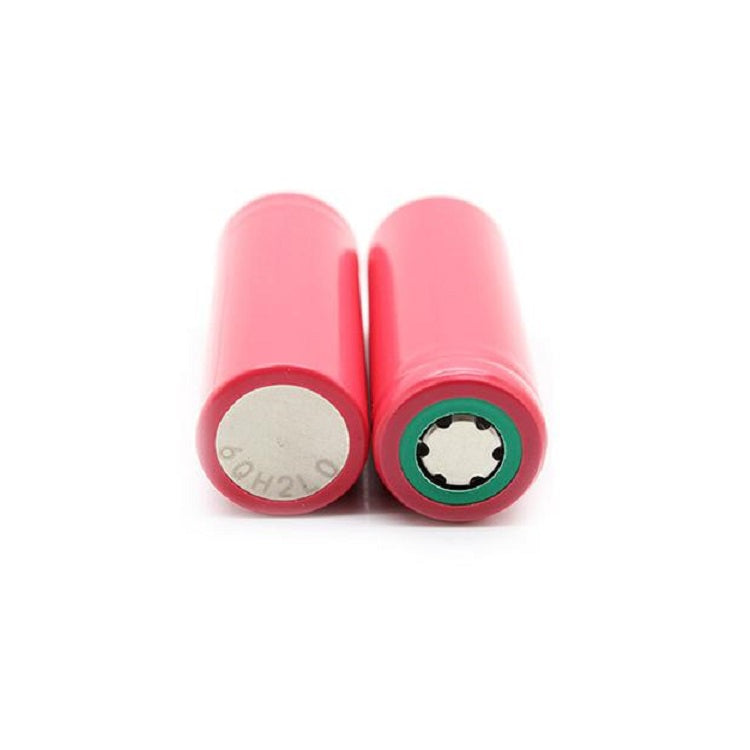

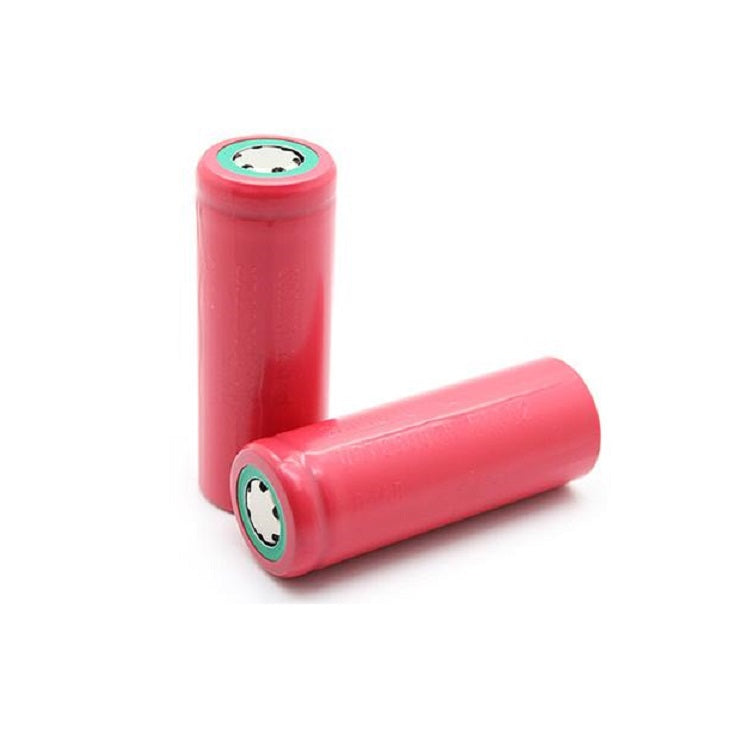

SANYO UR18500F 1620MAH 18500 Battery

SANYO UR18500F 1620MAH 3.7V Lithium-ion Battery

• >20K cells in stock, 100% original packing, fast shipping by air or ocean.
• SDS UN38.3 UL1642 CB IEC62133 test reports and certificates are available.

SANYO 18500 Cell Specifications

Cell Model: UR18650F

Nominal Capacity Min. 1620 mAh
Nominal Voltage 3.7V
Charging Method: Constant Current -Constant Voltage
Charging Voltage 4.2V
Charging Curren  Std. 1620mA
Charging Time 2.5hrs.
Ambient Tem perature Charge 0~+40C
Dis charge -20~ +60°C
Storage -20~+50C
Weight (Max.) 33.5g
Dimensions (Max.) (D) 18.10mm (H) 49.30m m
Volum etric Energy Density_ 472Wh/L
Gravim etric Energy Density 178Wh/kg
