Battery cells of Top Brands

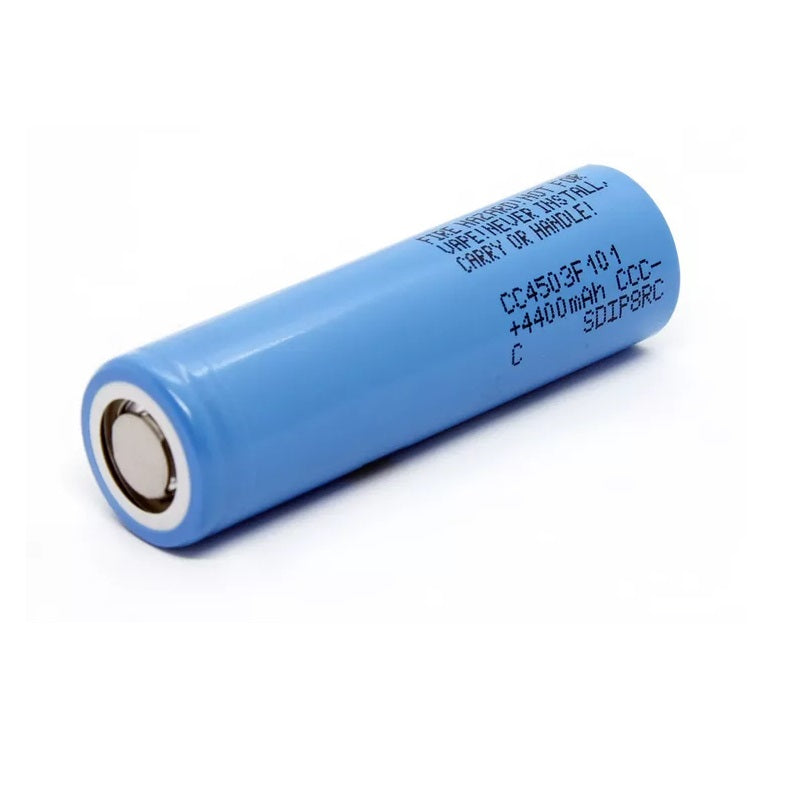

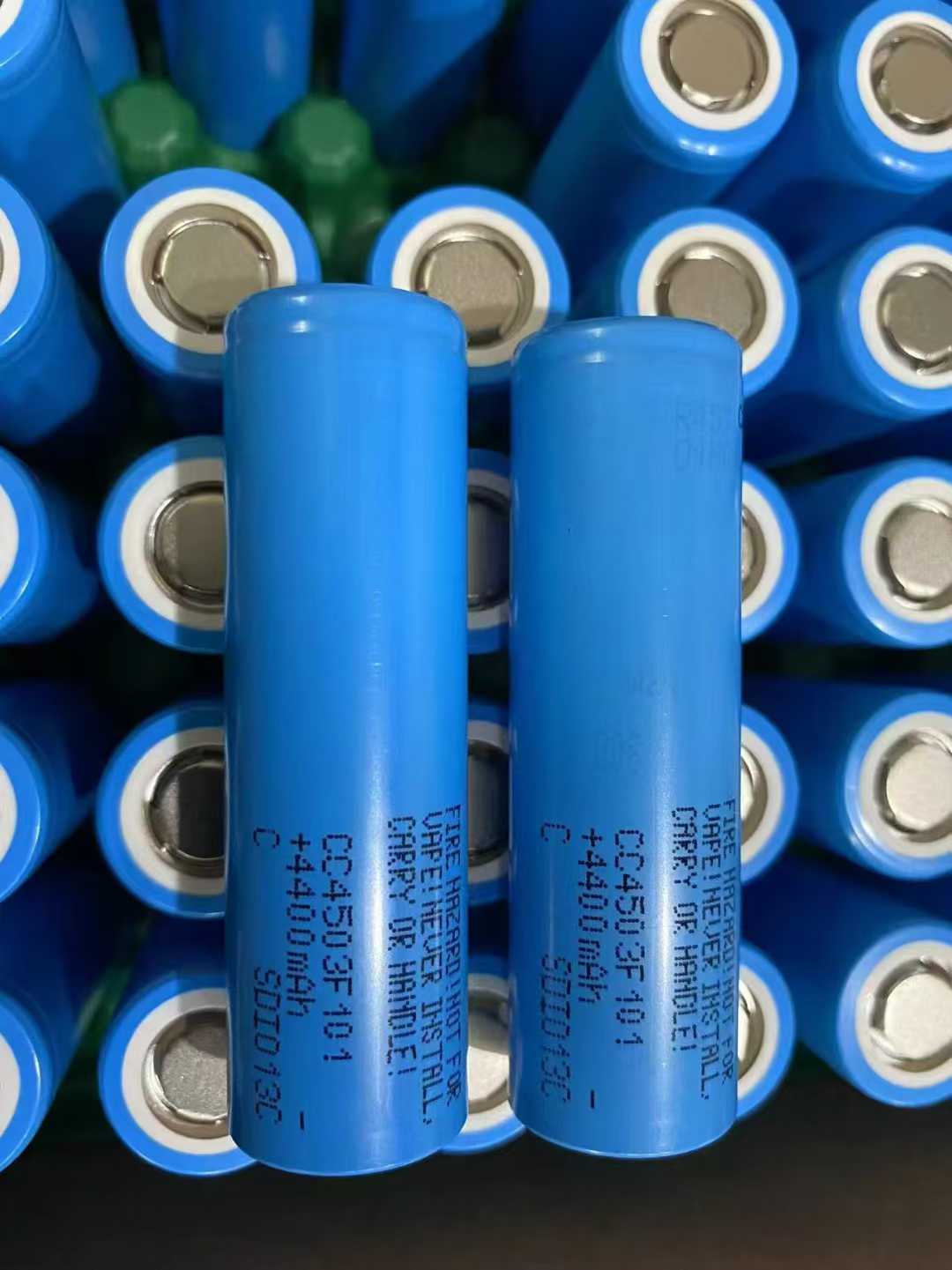

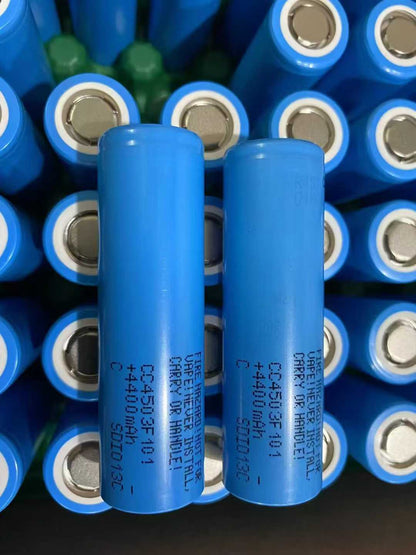

Samsung 45T 21700 4500mAh 35A Battery - CC4503F101
Samsung 45T 21700 4500mAh 35A Battery - CC4503F101
Couldn't load pickup availability
Share
Samsung 45T - CC4503F101
- >20K cells in stock, fresh date code!
- Fast shipping by sea or air from China.
- We hold SDS UN38.3 BIS CB IEC62133 UL1642 Test reports.
Specifications:
| Manufacturer | Samsung SDI |
| Model | 45T |
| Size | 21700 |
| Positive Terminal | Flat Top |
| Nominal Capacity | Typ. 4500mAh, Min. 4400mAh |
| Continuous Discharge Rating (max) | 35A without temp cut | 50A with 80C temp cut |
| Nominal Voltage | 3.6V |
| Maximum Voltage | 4.2V |
| Discharge cut-off Voltage | 2.5V |
| Protected | No |
| Operating temperature (Ambient) | Charge : -10 to 60℃(-10 to 0 : Safety performance only), Discharge: -20 to 60℃ |
| Dimensions | Max 70.62 x 21.35mm |
| Approx. Weight | Max. 72g |
| Country of Origin | Republic of Korea |
| Associated Names | INR21700-45T, CC4503F101 |
| Data Specification Sheet | Yes |
WARNING:
Use caution as misusing or mishandling the battery may cause a FIRE or EXPLOSION which may result in personal injury, property damage, or death. The user must have an appropriate understanding of the potential dangers of LITHIUM ION BATTERIES before purchase and usage. No express or implied guarantee of compatibility, suitability, or fitness for any particular purpose or device can be made. This battery is manufactured and sold for the intended use of system integrations with proper protection circuitry or battery packs with a BMS (battery management system) or PCB (circuit board/module). This battery is neither designed nor intended to be used with an E-CIGARETTE, VAPORIZER, or similar device and MUST NOT be used with such devices due to RISK OF FIRE or EXPLOSION. If purchasing this battery for resale purposes, you MUST forward ALL warnings to ALL customers for their reference and safety!
