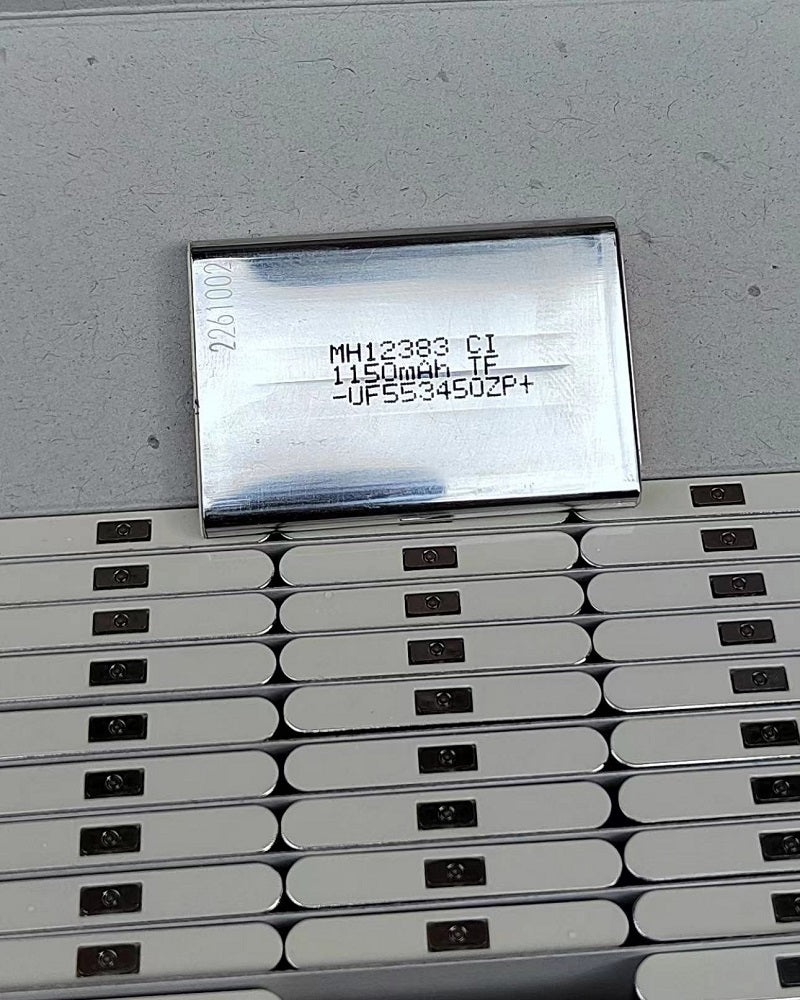

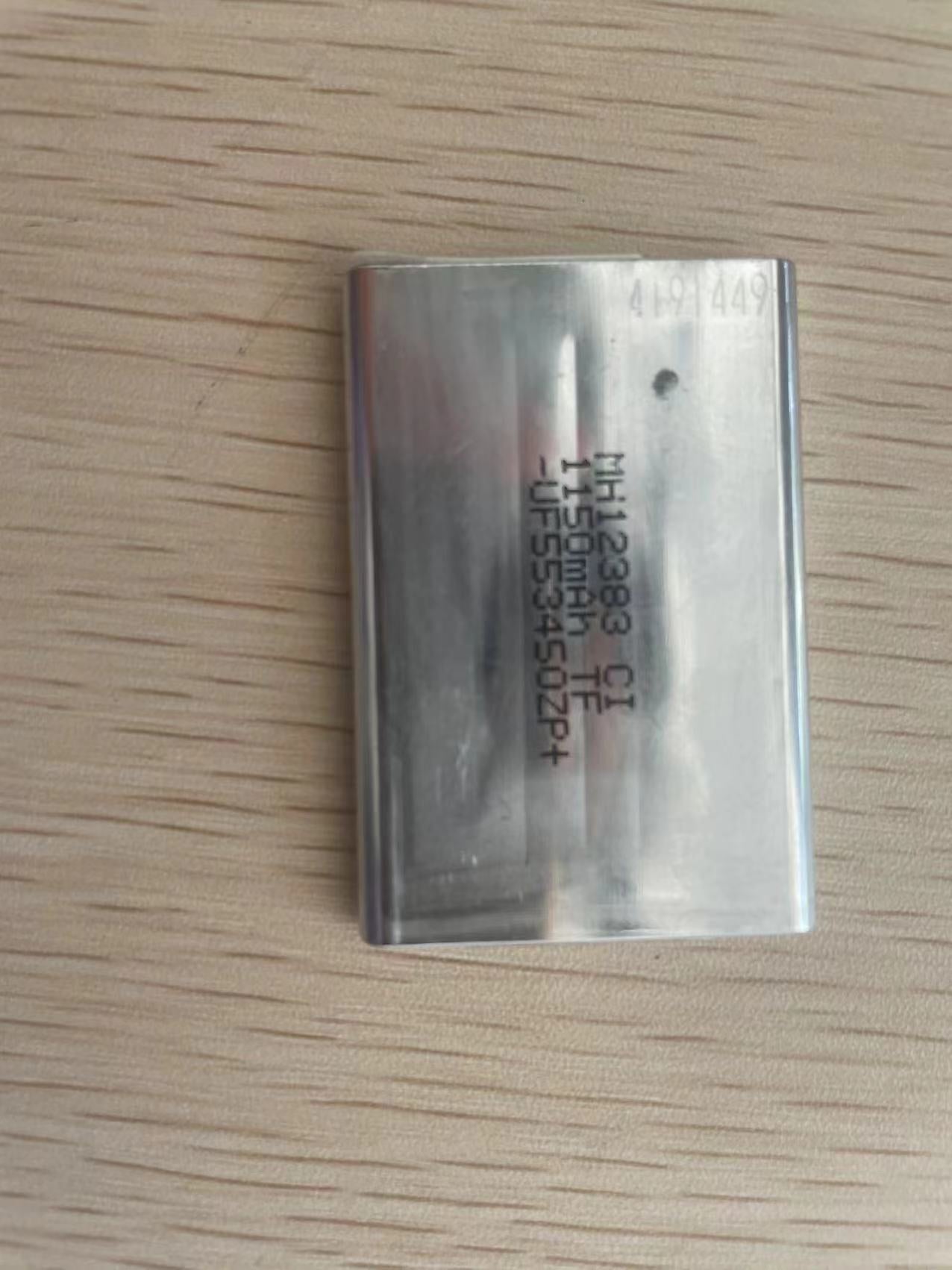

Panasonic UF553450ZP 1150mAh 553450 Battery

Panasonic UF553450ZP Battery cells

In stock, Panasonic 553450 fresh cells, fast shipping by air or sea, MSDS UN38.3 RoHS CB UL1642 IEC62133 are available.

Datasheet

1. This specification is applied to the Panasonic Lithium Ion Battery of the above mentioned type for a Portable telephone.

2. Battery Classification and Type
2.1 Battery Classification: Lithium-Ion Cells
2.2 Battery Type: UF553450ZP

3. Nominal Specifications
3.1 Nominal Capacity 1150mAh 0.2CA discharge
3.2 Nominal Voltage 3.70V
3.3 End Voltage 2.75V
3.4 Charging Current (Std.) 1C(=1.15)A 0 ~ +40℃
3.5 Charging Voltage 4.20±0.03V
3.6 Charging Time (Std.) 3hours
3.7 Discharging Current (Std.) 1.15A -20 ~ +60℃
3.8 Discharging Current (Max.) 2.30A 0 ~ +40℃
3.9 Internal Resistance less than 80mΩ AC Impedance 1kHz
3.10 Weight less than 22.3g
