Panasonic BK120AAHU 1200mAh NiMH Battery
Panasonic BK120AAHU 1200mAh NiMH Battery
Couldn't load pickup availability
Share

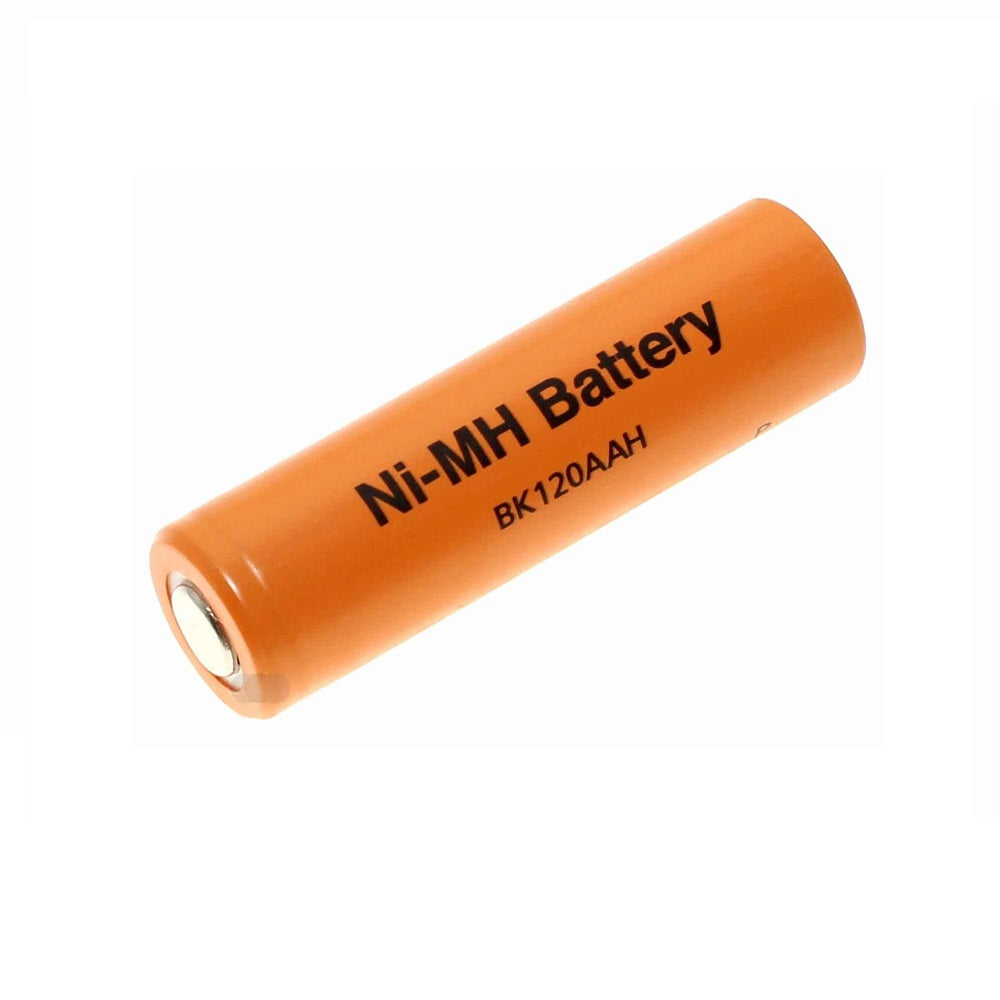

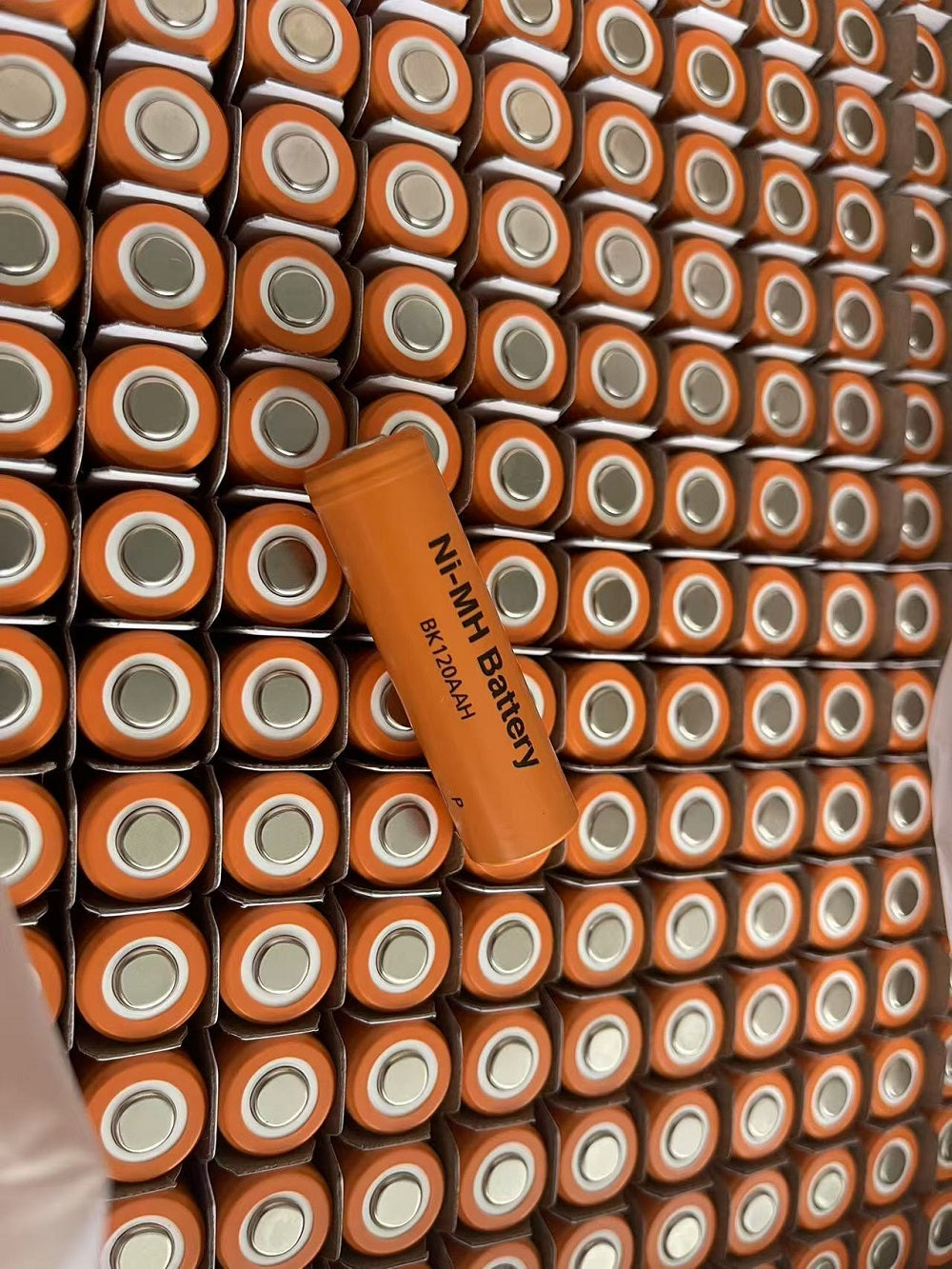

Panasonic BK120AAHU Battery
- In stock, Fresh date code, original packing.
- Fast shipping by Ocean or Air from China.
Overview
| Product name | Nickel-metal hydride battery |
| Series/Type | Infrastructure backup/long life type (U) |
| Part Number | BK120AAHU |
| Manufacturer | Panasonic |
Specification
| size | AA |
| Nominal Voltage (V) | 1.2 |
| Rated capacity (min.) (mAh) | 1200 |
| Average capacity (reference value) (mAh) | 1280 |
| Diameter (mm) | 14.5+0/-0.7 |
| Total height (mm) | 50.5+0/-1.5 |
| Mass approx. (g) | twenty four |
| Operating temperature range (charging) (℃) | -20 to 75 |
| Operating temperature range (discharge) (℃) | -20 to 75 |
| JIS | (HR15/51) |
| IEC 62133-1 | Certified |
| type | U (long life type) |
Regarding the adoption and use of our products
When adopting or using the products listed on this website, be sure to evaluate and confirm the product mounted in your product and in the actual usage environment. If the conditions of use change, please re-evaluate the product in accordance with the above conditions. Also, please conduct quality tests and evaluations to fully confirm the suitability of our products before using them.
If you are using the product in an application that requires special quality and reliability and in which failure or malfunction could directly threaten human life or cause harm to the human body (e.g., aerospace and aviation equipment, transportation and traffic equipment, combustion equipment, medical equipment, disaster prevention and crime prevention equipment, safety devices, etc.), you will need to confirm the specifications appropriate for the application. Be sure to check with our customer support in advance.
Regardless of the application, when using this product in equipment that requires high safety and reliability, we ask that you ensure the safety of the equipment by installing protective circuits, redundant circuits, etc., and also confirm the safety by conducting safety tests, etc.
