Battery cells of Top Brands

LG M50L 21700 5000mAh 3C Battery

LG M50L 21700 5000mAh 3C Battery

$1.49 USD
$2.50 USD $1.49 USD
Sale Sold out

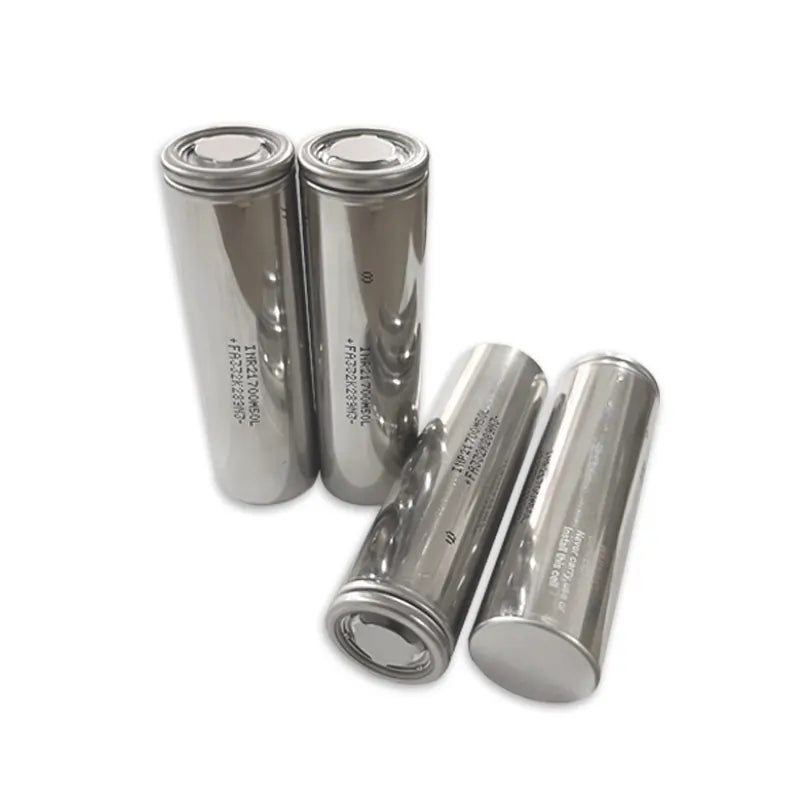

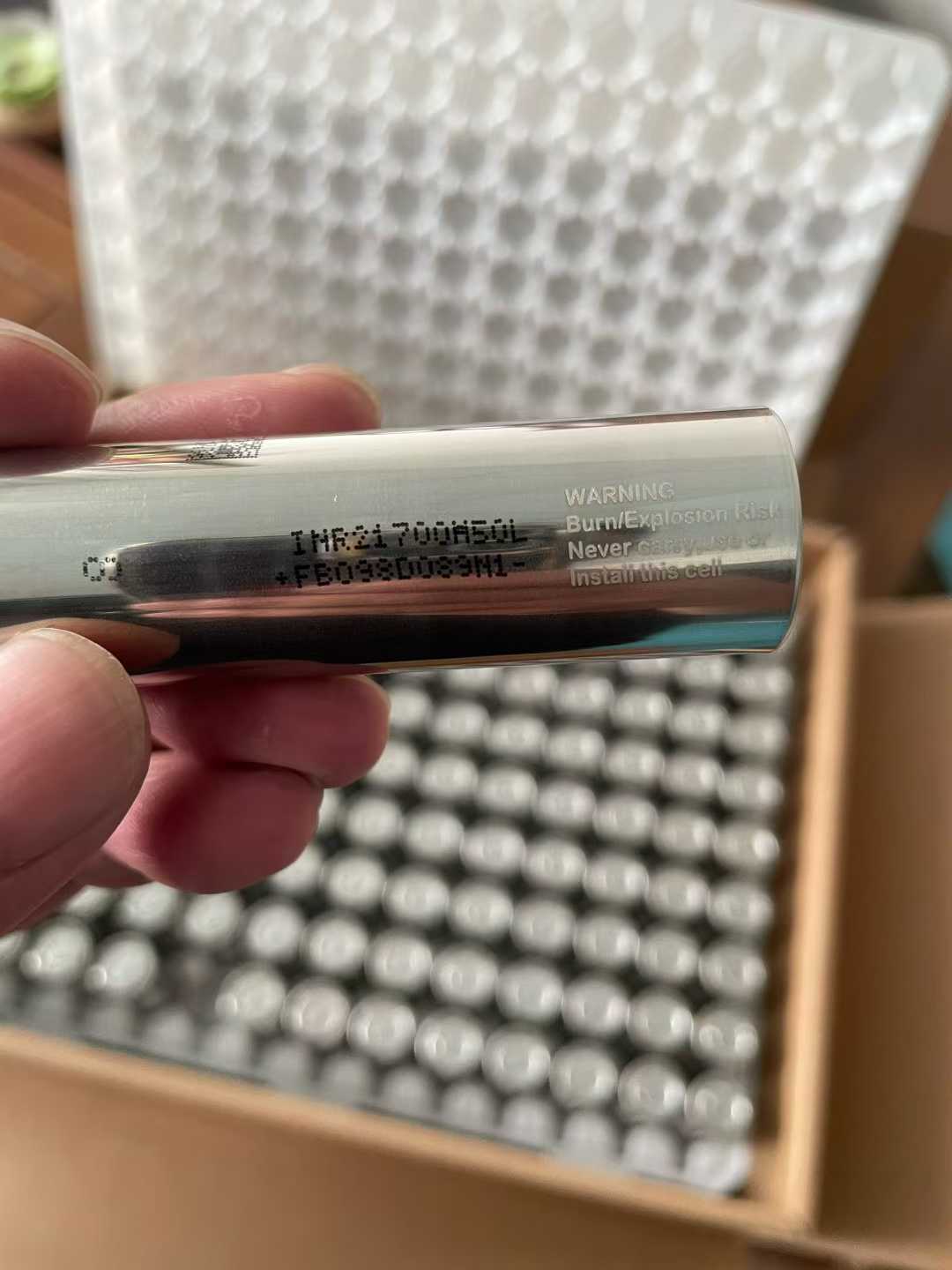

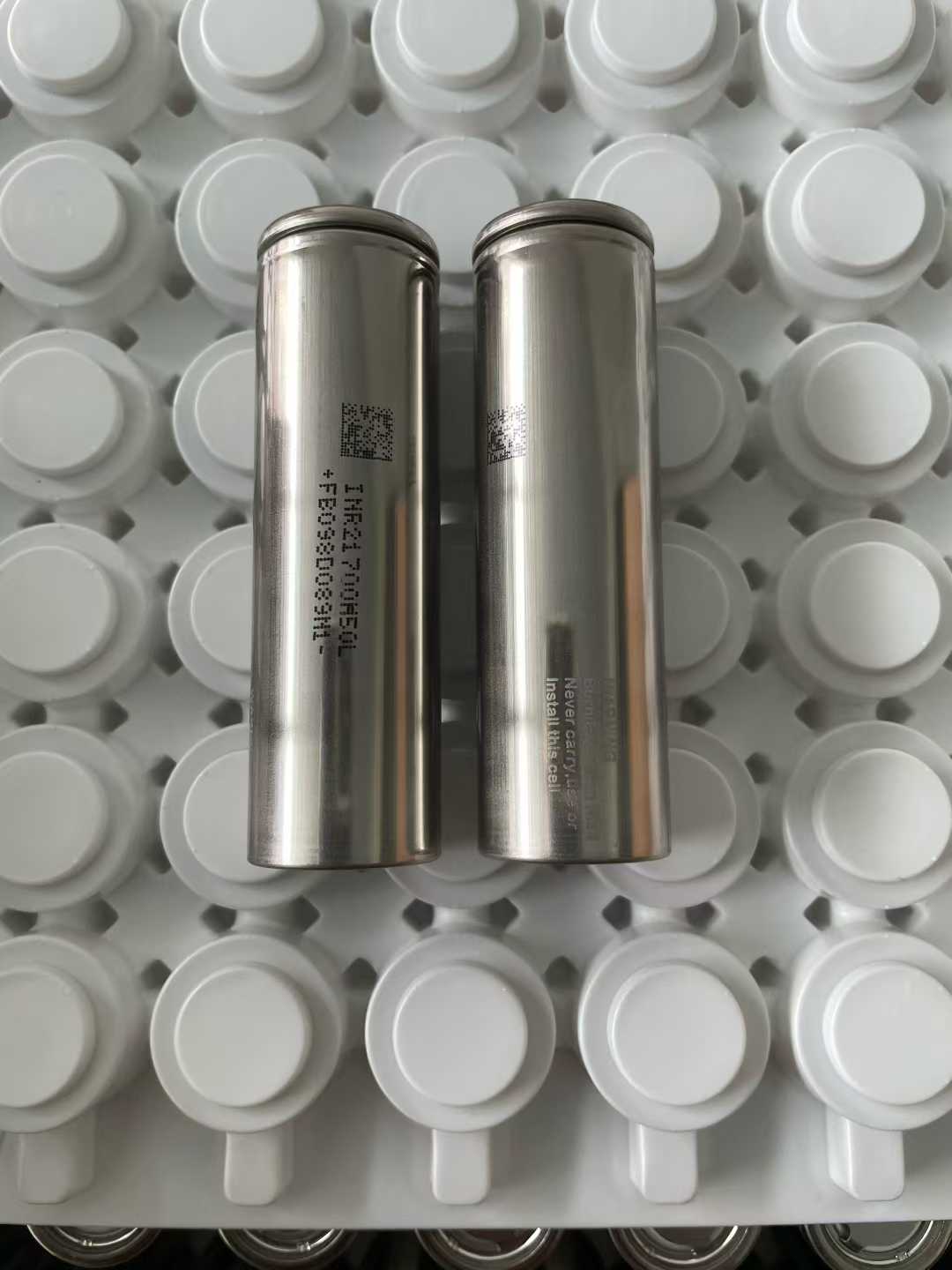

LG M50L 21700 5000mAh 3C Li-ion Battery

  1. >200K cells in stock, original packing, fast shipping by air or sea.
  2. Datasheet MSDS UN38.3 SGS CB BIS IEC62133 UL1642 Test Report.



Specification

Manufacturer LG
Model M50L
Size 21700
Positive Terminal Flat Top
Nominal Capacity 5000mAh
Continuous Discharge Rating (max) 14.4A
Nominal Voltage 3.6V
Maximum Voltage 4.2V
Discharge cut-off Voltage 2.5V
Protected No
Rechargeable Yes
Approx. Dimensions 21.10mm x 70.20mm
Approx. Weight 67.8g
Country of Origin China or Korea
Associated Names INR21700-M50L


LG M50L Max. Discharge Current

-20 ~ 10℃: 0.5C (2,400mA)
10 ~ 25℃: 3.0C(14,400mA)
25 ~ 55℃: 1.5C(7,200mA)


Chemistry:

Li(Mn,Ni,Co)O2+C6LixC6+Li1-x(Mn,Ni,Co)O2


Standard:

ANSI/CAN/UL 1973:2022


Use Temperature Range (°C):

Environmental 0 to 45 for charge,-30 to 55 for discharge

Surface limitation 55 for charge, 70 for discharge.

View full details
